For designers
Professional solutions for door challenges
Our industrial doors, designed for demanding professional use, withstand daily wear and varying weather conditions without compromising reliability. The colour, size and window placements of doors are custom-designed for each project. Our folding doors are lightweight and easy to use, even in large sizes, whether equipped with automated systems or manual operation.
We are here to assist you with any inquiries related to our products and services, as well as in the planning of projects and contracts. Our team of door experts and extensive network of collaborators are always ready to roll up their sleeves!

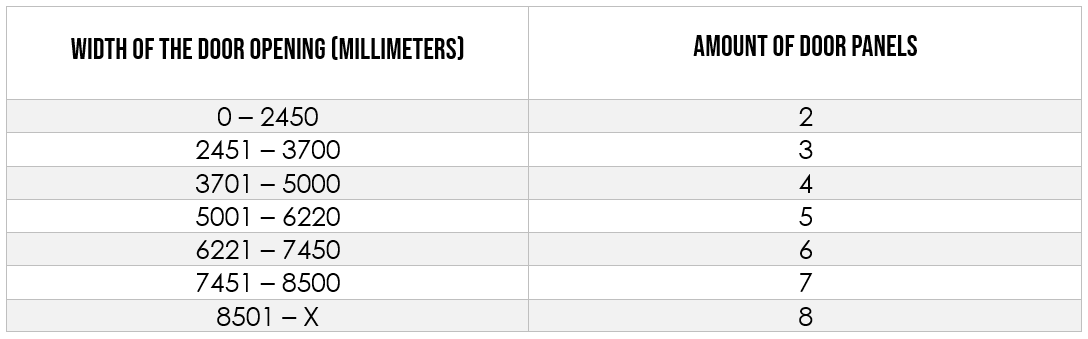

The table below determines the number of door leaves generally based on the width of the opening. We are also able to produce solutions that deviate from the table.
2-panel folding door
Inswing
Manually operated
* Threshold and track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
With door mounted operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
Outswing
Manually operated
* Threshold and track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
With door mounted operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
3-panel folding door
Inswing
Manually operated
* Threshold and track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
With door mounted operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
Outswing
Manually operated
* Threshold and track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
With door mounted operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
4-panel folding door
Inswing
Manually operated
* Threshold and track: Guide track (PDF) Carrying track (PDF)
* Observational drawing: Guide track (PDF) Carrying track (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
With door mounted operator
* Threshold and track: Guide track (PDF) Carrying track (PDF)
* Observational drawing: Guide track (PDF), Carrying track (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
With chain operator
* Threshold and track: Guide track (PDF) Carrying track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
Outswing
Manually operated
* Threshold and track: Guide track (PDF) Carrying track (PDF)
* Observational drawing: Guide track (PDF), Carrying track (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
With door mounted operator
* Threshold and track: Guide track (PDF) Carrying track (PDF)
* Observational drawing: Guide track (PDF) Carrying track (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
With chain operator
* Threshold and track: Guide track (PDF) Carrying track (PDF)
* Observational drawing (PDF)
* Mounting surfaces (PDF)
* Threshold view from above (PDF)
5-panel folding door
6-panel folding door
Inswing
Manually operated
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
With chain operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
Outswing
Manually operated
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
With chain operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
7-panel folding door
8-panel folding door
Inswing
Manually operated
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
With door mounted operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
With chain operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
Outswing
Manually operated
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
With door mounted operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
With chain operator
* Threshold and track (PDF)
* Observational drawing (PDF)
* Threshold view from above (PDF)
Features of our products
The durable and low-maintenance Findoor folding door is a great choice for various applications including barns, fire stations, airports, industrial buildings and service stations. Its surface is coated with steel sheeting and it features a water-resistant insulation. The lifting stainless steel hinges keep the bottom seal in good condition and make opening the door effortless. The EPDM-rubber seals withstand even extreme northern conditions. If needed, the folding door can also be equipped with an access door.
Steel clad folding door specifications
Maximum size: 14800×7000 (6-, 7- or 8-paneled door)
Maximum height for narrower doors: 8000 (Higher ones will be special projects)
Structure: Thermally insulated, sandwich-structured folding doors
Cladding: Heat galvanized sheet steel, minimum thickness 0,5mm.
Insulation thickness: 50 mm or 60 mm
Colour: From RR-colour chart (in special cases, from the RAL-colour chart)
Water resistance classification: 3, EN 12489 and EN12425
Wind pressure classification: 4 (up to a height of 4 meters) EN 12444 and EN 12424
Air permeability classification: 4 (determined by door size) EN 12427 and EN 12426
Sealing: The door panels have 8-fold male-female sealing between all adjacent panels, and the door bottom has a double doors-sweep. The seals are made of EPDM-rubber, which can withstand harsh conditions.
Hinges: Elevating steel hinges with ball bearings
Windows: Double panel selective thermal glass, windows with a height of less than 700 mm are made of tempered glass
Doors mounted to structure with mounting devices that are corrosion-proof to classification C4
Opening mechanisms:
- Manually operated: The door has a handle on its inside surface that allows its opening or closing
- Opening machinery: Door mounted operator or chain operator
Additional specification: Fire resistance classification of EI30
- Maximum size 5m x 5m
- Windows are not available on the doors with fire resistance classifications
- The access door is not available with fire resistance classifications
- The appearance is the same as a normal folding door
- The fire resistant doors are heavier, therefore the mounting surface on the header face must always be at least 250mm
- The available opening machinery consists of a regulations consistent chain operator
Fully glazed folding door specifications
Maximum size: 7500×6000
Structure: Fully glazed folding doors with steel reinforcements
Thickness: 50 mm or 60 mm
Sealing: Seals made of EPDM-rubber that withstands extreme conditions. The seals between door panels have 8 chambers, with a double drag seal at the bottom.
Hinges: Lifting, ball-bearing steel hinges
Windows: 2K selective insulated glass. Also available as tempered and laminated. Windows below 700 mm in height are made of tempered glass.
Opening mechanisms:
- Manual doors: The folding door has handles on the inner surface for opening and closing.
- Mechanical operation: Door mounted operator or chain operator
Door mounted operator
Suitable for 2-, 3-, 4-, 6- and 8-panel doors. Operator is attached to the door panel, so it doesn’t take up space above the door. Excellent solution for smaller and medium-sized doors, for example in industrial buildings, smaller fire stations and barns.
Motor: 24V motor operates with single phase electric current
Safety equipment:
- An electric eye system in line with the door prevents the closing of the door if there is some physical object between the detectors.
- The door opening machinery includes a motor overload activated shut-off switch, which overload would be caused, for example, by a physical object preventing the opening or closing of the door. This prevents a breakdown of the machinery itself.
- Folding doors that include a built-in entry door have a disconnecting switch that prevents the opening of the folding door when the entry door through it is open.
- Three push-button switches, Open-Stop-Close, beside the door opening.
- The door is also operable manually during power outages.
Control devices for the door opening machinery:
- Push-button switch box (Open – Stop – Close)
- Remote control switch
- The door opening machinery can be hooked up to the building’s physical access system
Additional available features:
- Canceling electric eyes (the door automatically closes once a vehicle has crossed the beam of light to the electric eye)
- Radar utilizing door opening systems
- Control through VIRVE signals
- Magnetic loop door opener (installed in customer prepared conduit grooves)
Chain operator
For 4-, 6- and 8-panel doors. Suitable for big doors, as well as places where doors are opened frequently, such as, for example, at fire stations, carwashes and factories.
A separate rail for mounting the door opening machinery will be mounted above the door. The machinery will then be installed upon this rail.
This machinery will be operated with normal grid electric current (3-phase current)
Safety equipment:
- An electric eye system in line with the door prevents the closing of the door if there is some physical object between the detectors.
- The door edges that close against the building structure contain sensors.
- Folding doors that include an entry door have a disconnecting switch which prevents the opening of the folding door when the entry door through it is open.
- Three push-button switch box, Open-Stop-Close, beside the door opening.
- The door is also operable manually during power outages.
Control devices for the door opening machinery:
- Push-button switches (Open – Stop – Close) in switch box.
- Remote control switch
- The door opening machinery can be hooked up to the building’s physical access system
Additional available features:
- Canceling electric eyes (the door automatically closes once a vehicle has crossed the beam of light to the electric eye)
- Radar utilizing door opening systems
- Control through VIRVE signals
- Magnetic loop door opener (installed in customer prepared conduit grooves)
Entry and double door specifications
The opening for an entry door has a maximum width of 1395 mm.
The opening for the double door has a maximum width of 2655 mm. If a wider opening is needed, then a folding door will be installed.
Door cladding is of heat galvanized sheet steel, painted by heat cured powder coating
The door core is of insulating material that will not absorb water
The door is pre-hung inside a frame made of aluminum or galvanized steel
The door assembly includes either a steel threshold or a double door-sweep on the bottom of the door
Why to choose Findoor?
Manufactured in Finland
Findoor is Finland’s largest manufacturer of folding doors. Our factory is located in Ii, Northern Ostrobothnia, where we produce approximately 2500 doors per year. Our experienced team of installers takes care of the door installation, ensuring flawless operation. This guarantees you the trusted Findoor quality that withstands professional use.
High quality products
The energy-efficient folding doors are designed to withstand tough and demanding professional conditions. They are secure, easy to use, and reliable, with thermal efficiency and weather-tight qualities among the best in the market. We continuously improve our products to better meet the needs of our customers.
Customized service
We actively reach out to our customers to ensure we fully understand all the necessary features required for their doors. We customize the door’s functionality and appearance according to your preferences and deliver it flexibly and promptly, based on your schedule. This way, you can be confident that you’ll receive a perfectly fitting and functional door, guaranteed on time.
Culture of commitment
We value honest and straightforward business practices. We stand behind the quality of our products and welcome all feedback. We tackle every task with enthusiasm, even the difficult ones. We take full responsibility for our products. That is why our phone number is always available on our doors, so you can easily reach us for any inquiries.
